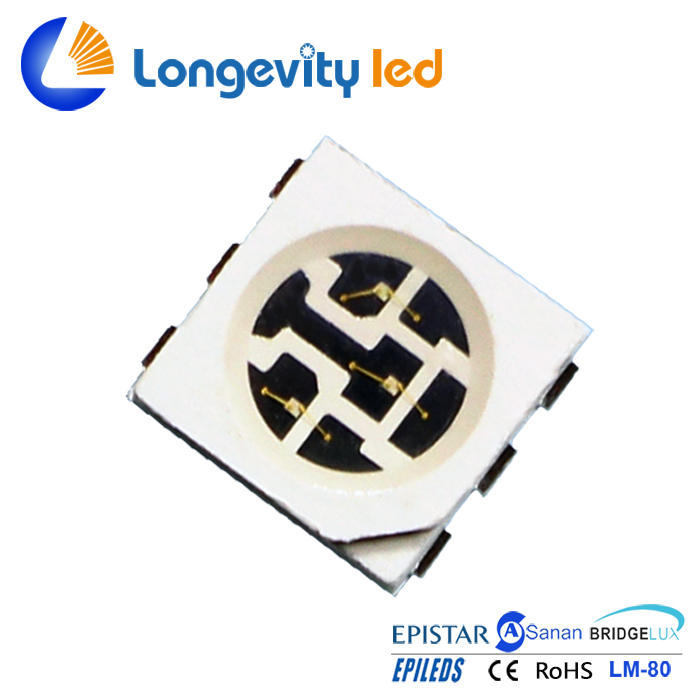

smd5050 rgb high brightness 0.2w epistar chip
High photosynthetic efficiency, high cost performance
adopting pure gold thread, 99.99% copper holder
this product is widely used on LED Strip light and LED car light
Description
Vertical radiating and low thermal resistance structure（Rthj-s≈20°c/w）
Good light uniformity, wide visual angle, high efficiency, high photosynthetic efficiency, high optical channel retention rate
Automatic integration of molding progress , technical maturity, stable performance, high cost effective
Pass LM80 life test certificate, product technical parameters are conform to EU ERP Standard.
| Power (W) | Chip Brand | Chip Size(mil) | CCT(K) / WLD（nm） | Voltage(VF) | Current(mA) | Brightness (LM) / MCD） |
Note |
| 0.2W Single color |
Sanan | 8*10 | 2600-20000K | 3.0-3.4V | 60mA | 18-20LM | 1K/reel 6K/reel |
| 8*12 | 20-22LM | ||||||
| 8*15 | 22-24LM | ||||||
| Epistar | 8*15 | 22-24LM | |||||
| Epistar | 10mil | Red 620-630nm | 2.0-2.4V | 2000-2500MCD | |||
| 10mil | Yellow 590-600nm | 2000-2500MCD | |||||
| 8*10 | Green 520-530nm | 3.0-3.4V | 5000-6000MCD | ||||
| 8*10 | Blue 460-470nm | 1500-2000MCD | |||||
| 8*15 | Amber /Gold Yellow 1600-2000K |
20-22LM | |||||
| Hualei | 8*12 | Pink | 12-14LM | ||||
| 8*12 | Ice Blue | 12-14LM | |||||
| 8*10 | Purple 390-405nm | 1-2LM | |||||
| 0.2W RGB |
Sanan | Normal brightness | R:620-625 G:520-525 B:460-465 |
R:2.0-2.4V G/B:3.0-3.4V | 60mA | 1500-2000MCD (R:450-500 G:900-1000 B:450-500) | |
| High brightness | R:620-625 G:520-525 B:460-465 |
2000-2500MCD (R:500-700 G:1500-2000 B:400-600) | |||||
| Epistar | Super High brightness | R:620-625 G:520-525 B:460-465 |
3000-3500MCD (R:700-850 G:1800-2300 B:600-750) |
