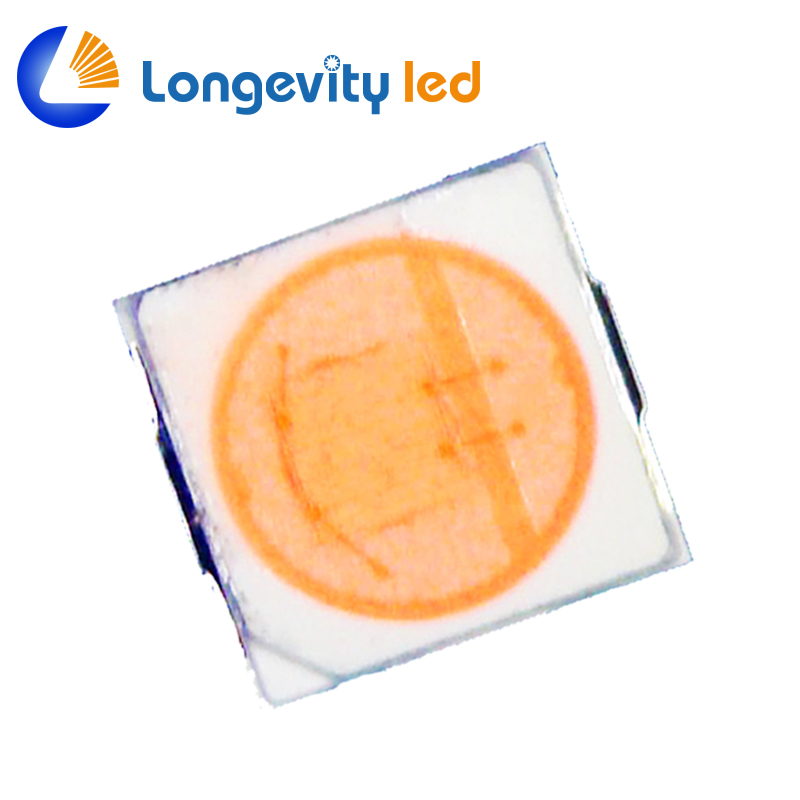

smd3030 red 620-630nm 1.0w
High photosynthetic efficiency, high cost performance
adopting pure gold thread, 99.99% copper holder
this product is widely used on LED box light and LED plant grow lights
Description
Vertical radiating and low thermal resistance structure（Rthj-s≈20°c/w）
Good light uniformity, wide visual angle, high efficiency, high photosynthetic efficiency, high optical channel retention rate
Automatic integration of molding progress , technical maturity, stable performance, high cost effective
Pass LM80 life test certificate, product technical parameters are conform to EU ERP Standard
| 3030 SMD LED | ||||||||
| No. | Power(W) | Chip Brand | Chip Size(mil) | CCT(K) / WLD（NM） | Voltage(VF) | Current(mA) | IV/MCD | Packing |
| 1 | 1W | Sanan | 24*24*2 | Red 620-625/625-630 | 2.0-2.4V | 350mA | 40-50LM | 4K/reel |
| 2 | 24*24*2 | Yellow 590-595/595-600 | 40-50LM | |||||
| 3 | 15*30*2 | White 2700-20000K | 3.0-3.4V | 100-110LM | ||||
| 4 | 17*34*2 | 110-130LM | ||||||
| 5 | 20*20*2 | Green 520-525/525-530 | 50-70LM | |||||
| 6 | 17*34*2 | Blue 460-465/465-470 | 20-30LM | |||||
| 7 | 17*34*2 | Pink | 60-80LM | |||||
| 8 | 17*34*2 | Pink Purple | 60-80LM | |||||
| 9 | 17*34*2 | Ice Blue | 60-80LM | |||||
| 10 | 17*34*2 | Amber/Gold Yellow 1700-1900K | 80-100LM | |||||
