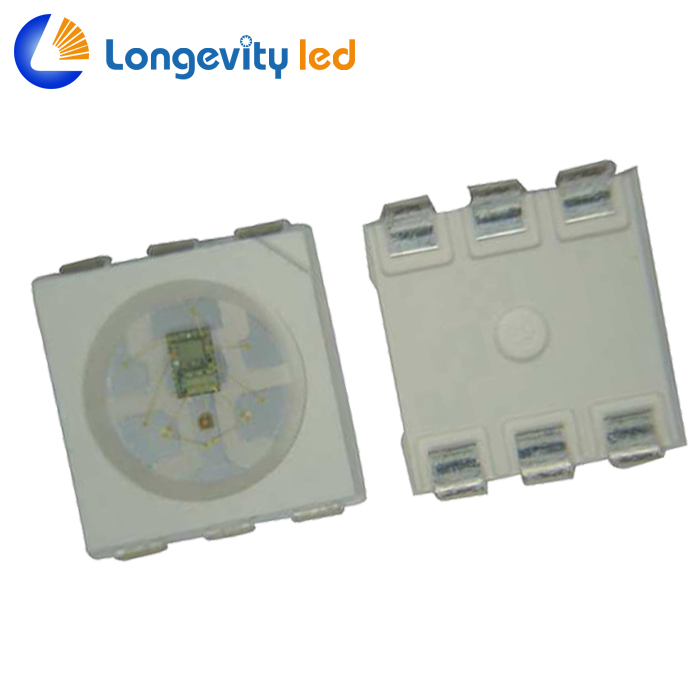

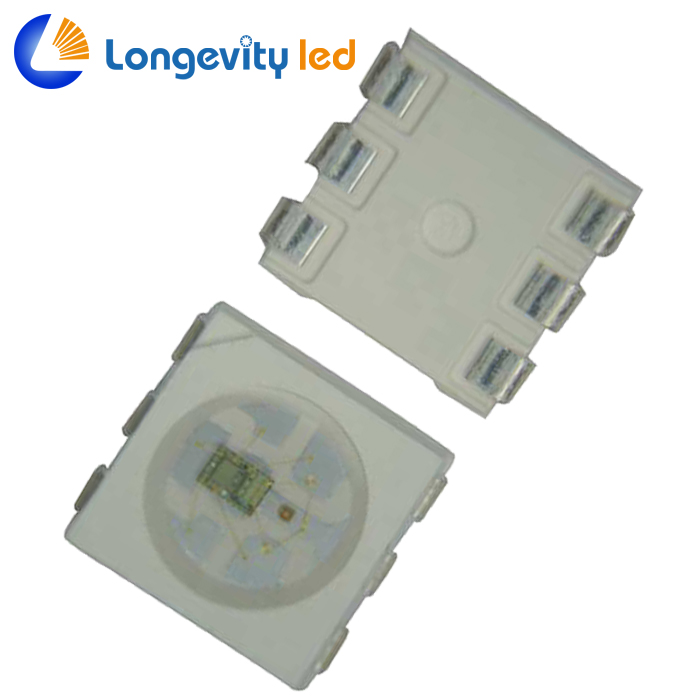

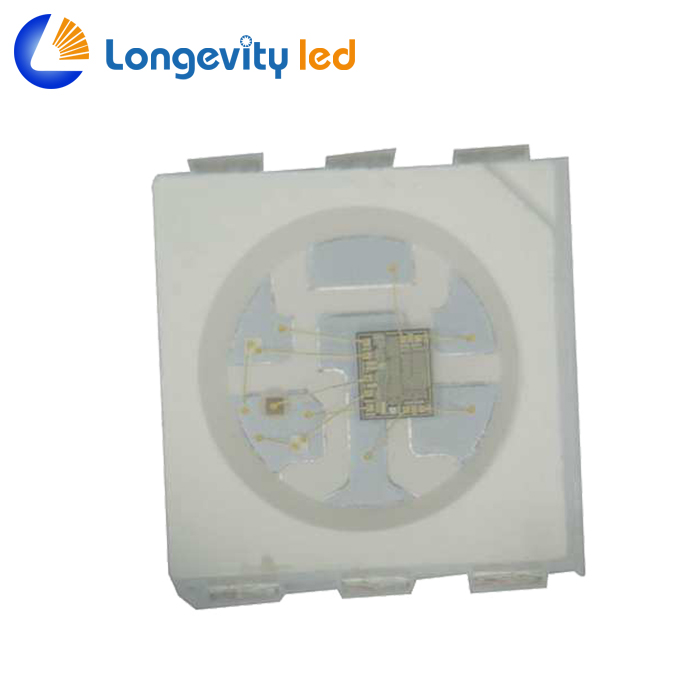

APA102C 5050 RGB LED Chip

CMOS process,low voltage ,low consumption

Synchronization of two-lane

Choose positive output or negative RGB three-color LED output

8 bit(256 level) color set ,5bit(32 level) brightness adjustment

Build-20ma constant current output

With self-detection signal build in support for continuous oscillation PWM output ,can be maintained static screen

Description

APA102 is a type ic for the three-color RGB Diming control strip and
string ,This ic using the CMOS process to provide three-color RGB LED output
driver to adjust the output with 256 gray scale and 32 brightness adjustment ,APA
with 2 signal output way , one is clock ,another is data, the clock and data is
synchronizated ,so that the crystal cascade piece of output movement is
sychronizated .
