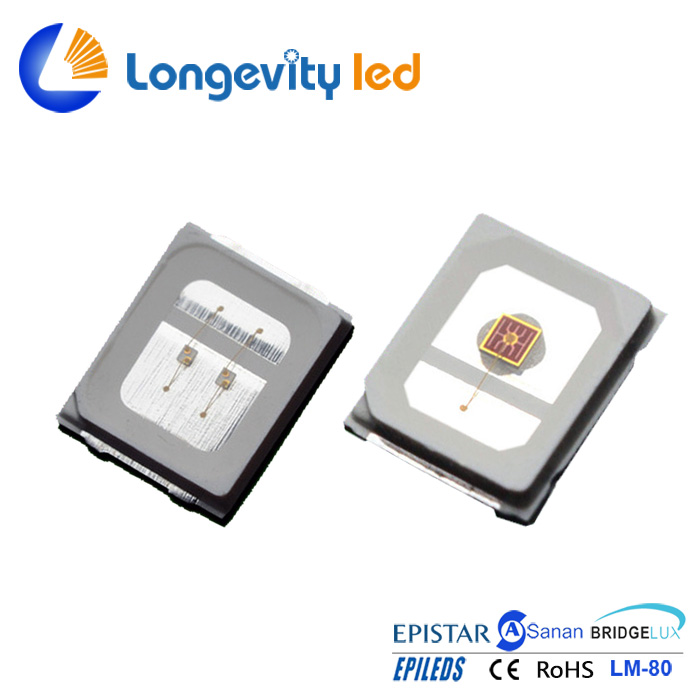

2835 red color 620nm led chip super bright
High photosynthetic efficiency, high cost performance,
adopting pure gold thread, 99.99% copper holder,
this product is widely used on LED Strip light and LED Tubes
Description
Vertical radiating and low thermal resistance structure（Rthj-s≈20°c/w）
Good light uniformity, wide visual angle, high efficiency, high photosynthetic efficiency, high optical channel retention rate
Automatic integration of molding progress , technical maturity, stable performance, high cost effective
Pass LM80 life test certificate, product technical parameters are conform to EU ERP Standard
| 3V 2835 SMD LED Series | |||||||
| Voltage | Power (W) | Chip Brand | Chip Size(mil) | CCT(K) / WLD（nm） | Voltage(VF) | Current(mA) | Brightness (LM) / MCD） |
| 3V | 0.2W White |
Sanan | 10*20 | 2600-20000K | 3.0-3.4V | 60mA | 22-24LM |
| 10*23 | 24-26LM | ||||||
| 10*30 | 26-28LM | ||||||
| Jucan | 12*29 | 28-30LM | |||||
| Epistar | 10*30 | 28-30LM | |||||
| 0.5W White |
Sanan | 10*30 | 150mA | 50-55LM | |||
| 15*30 | 55-60LM | ||||||
| 17*34 | 60-65LM | ||||||
| FOREPI | 24*48 | 65-70LM | |||||
| 28*48 | 70-75LM | ||||||
| Epistar | 17*34 | 60-65LM | |||||
| 23*45 | 65-70LM | ||||||
| 0.2W Single color |
Sanan | 14*14 | Red 620-630nm | 2.0-2.4V | 60mA | 6-9LM | |
| 14*14 | Yellow 590-600nm | 6-8LM | |||||
| 8*12*2 | Green 520-530nm | 3.0-3.4V | 10-12LM | ||||
| 10*30 | Blue 460-470nm | 3-5LM | |||||
| 12*12*2 | Purple 390-400nm | 1-2LM | |||||
| 10*30 | Pink | 14-16LM | |||||
| 10*30 | Ice Blue | 15-17LM | |||||
| 10*30 | Pink purple | 8-10LM | |||||
| 10*30 | Amber/ Gold Yellow |
15-20LM | |||||
| 0.5W Single color |
Sanan | 24*24 | Red 620-630nm | 2.0-2.4V | 150mA | 20-25LM | |
| 14*14*2 | Yellow 590-600nm | 18-20LM | |||||
| 24*24 | 20-25LM | ||||||
| 14*14*2 | Green 520-530nm | 3.0-3.4V | 18-20LM | ||||
| 24*24 | 30-35LM | ||||||
| 17*34 | Blue 460-470nm | 12-14LM | |||||
